Fender

Standard Rubber Fender

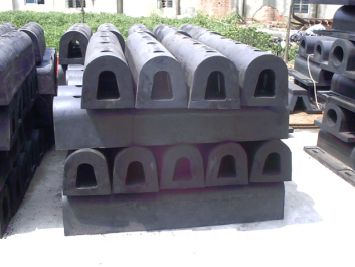

Semi-Circular (Type D) Rubber Fender

Feature
1. With reasonable reaction it may absorb more energy than of cylindric type.
2. Convenient in installing.
3. It is usually used for docks of frame work type and ships due to the small size of its bottom width.

Specification：

Unit：mm

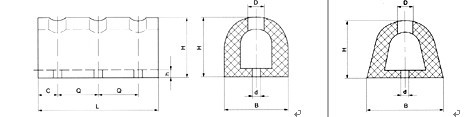

Type	Specification									Note
Type	H	B	L	Holes	Q	C	h	D	d	Note
D200×200×850	200	200	850	3	325	100	40	60	25	Fenders of other specifications and sizes can be discussed with customers
D200×200×900	200	200	900	2	600	150	40	60	25
D200×200×1000	200	200	1000	2	600	200	40	60	25
D200×200×1500	200	200	1500	3	600	150	40	60	25
D200×200×2000	200	200	2000	4	500	250	40	60	25
D300×300×850	300	300	850	3	325	100	40	65	32
D300×300×900	300	300	900	2	600	150	40	65	32
D300×300×1000	300	300	1000	3	350	150	40	65	32
D300×300×1500	300	300	1500	4	400	150	40	65	32
D300×300×2000	300	300	2000	4	500	250	40	65	32
D300×360×850	300	360	850	3	325	100	40	65	32
D300×360×1000	300	360	1000	3	350	150	40	65	32
D300×360×1500	300	360	1500	4	400	150	40	65	32
D400×400×850	400	400	850	3	325	100	55	65	32
D400×400×1000	400	400	1000	3	350	150	55	65	32
D400×400×1500	400	400	1500	3	600	150	55	65	32
D400×400×1500	400	400	1500	4	400	150	55	65	32
D500×500×850	500	500	850	3	325	100	90	97	45
D500×500×1000	500	500	1000	3	350	150	90	97	45
D500×500×1500	500	500	1500	3	600	150	90	97	45
D500×500×1500	500	500	1500	4	400	150	90	97	45

Performance

Type	Performance
Type	Design Compressive Deflection(%)	Reaction Force(KN)	Energy Absorption (KJ)	Tolerance%
D200×200×850	50	176.2	7.1	±10
D200×200×900		186.6	7.6
D200×200×1000		207.3	8.4
D200×200×1500		310.9	12.6
D200×200×2000		414.5	16.8
D300×300×850		255.0	10.0
D300×300×900		270.0	10.6
D300×300×1000		294.3	11.8
D300×300×1500		441.5	16.7
D300×300×2000		588.6	23.6
D300×360×850		280.5	11.5
D300×360×1000		323.7	13.1
D300×360×1500		480.7	19.6
D400×400×850		325.2	16.7
D400×400×1000		382.6	19.6
D400×400×1500		573.9	29.4
D500×500×850		383.6	26.7
D500×500×1000		451.3	31.4
D500×500×1500		686.7	47.1
D500×500×2000		902.6	62.8

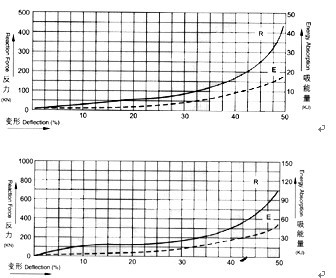

Performance Curve：
D300×300×1500L

Rubbercomp\Per.\Deflection

Design Compressive Deflection 50%

Reaction(KN)

Absorption(KJ)

Tolerance

Standard Type

441.5

16.7

±10%

D500×500×1500L

Rubbercomp\Per.\Deflection	50%设计压缩变形Design Compressive Deflection 50%
Rubbercomp\Per.\Deflection	Reaction(KN)	Absorption(KJ)	Tolerance
Standard Type	686.7	47.1	±10%
