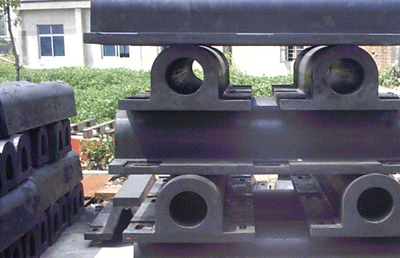

Type GD Rubber Fender

Feature
1.The performance of reaction force and  energy absorption is higher than type  D
2.It can be installed firmly and is in  long  service life
3.It is usually suitable for the frame  type harbor

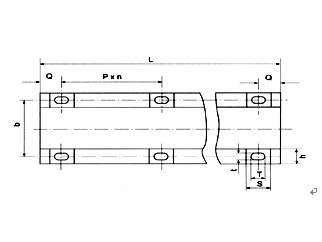

Specification





Unit:mm

Type

H
B
b
L
Q
P
S
h
T
t
n
GD280H×1000L
280
540
(600)
430
(490)
1000
150
700
165/170
120
82/90
41/45
1
GD280H×1500L
280
540
(600)
430
(490)
1500
150
600
165/170
120
82/90
41/45
2
GD280H×2000L
280
540
430
2000
145
570
165
120
82
41
3
GD280H×2500L
280
540
430
2500
150
550
165
120
82
41
4
GD300H×1000L
300
600
490
1000
150
700
165
120
90
45
1
G300H×1500L
300
600
490
1500
150
600
165
120
90
45
2
GD300H×2000L
300
600
490
2000
145
570
165
120
90
45
3
GD300H×2500L
300
600
490
2500
150
550
165
120
90
45
4

Products of other specification and sizes can be discussed with custormers。

Performance

Type

Design Compressive Deflection(%)
Performance
 Reaction Force(KN)
Energy Absorption(KJ)
Tolerance%
GD280H×1000L
50
371.0
14.0
±10
GD280H×1500L
557.0
21.0
GD280H×2000L
742.0
28.0
GD280H×2500L
927.5
35.0
GD300H×1000L
441.0
17.6
G300H×1500L
661.5
26.4
GD300H×2000L
882.0
35.2
GD300H×2500L
1102.5
44.0

Performance Curve

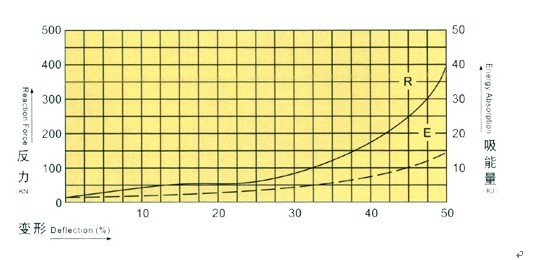

GD280H×1000L

Rubbercomp\Per.\Deflection
Design Compressive Deflection 50%
Reaction Force(KN)
Energy Absorption(KJ)
Tolerance
Standard Type
371
14.0
±10%

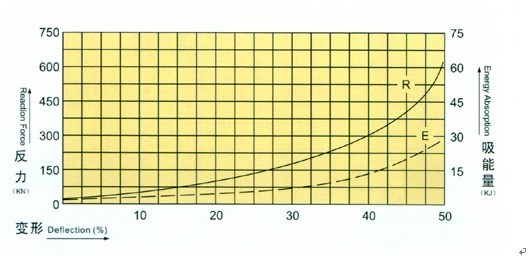

GD300H×1500L

Rubbercomp\Per\Deflection
Design Compressive Deflection 50%
Reaction Force(KN)
Energy Absorption(KJ)
Tolerance

Standard Type
661.5
26.5
±10%



Installation

Specification\Size\Name
Bolt
Cushion
Embedded Nut
D
J
S
H
m
n
N
U
V
Q
P
R
d
e
a
b
L
T
t
G
GD280H
M36
95
80
23
119
126
22
6
43
58
62
25
M36
50
85
125
360
9
10
85
GD300H
M39
110
90
26
119
126
22
6
43
58
62
25
M39
50
85
125
390
9
10
110
