Fender

Standard Rubber Fender

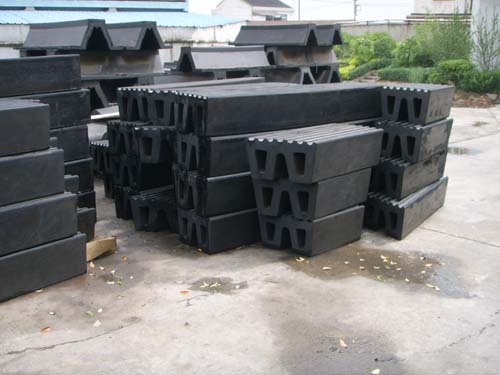

Type M Rubber Fender







Feature
Low reaction force, high energy absorption.Easy to be installed and main-tained.
Specification

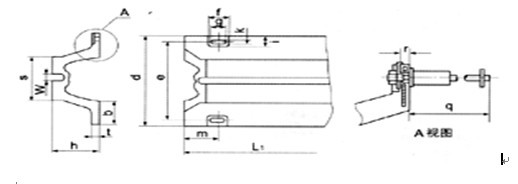

Profile size
Type
h
s
w
t
b
m
d
e
f
g
k
i
r
q
M300
300
396
60
33
204
140
750
640
140
70
35
105
24
230
M400
400
528
80
44
272
150
1000
870
165
82
41
120
30
290
M500
500
660
100
55
340
160
1250
1090
180
94
46
140
33
325
M600
600
776
120
66
408
170
1500
1310
195
100
50
160
36
430
M800
800
1035
160
88
544
180
2000
1740
270
136
68
260
48
430
Length Size
Unitmm
Type
L=1000
L=1500
L=2000
L1
C
P
n
L1
C
P
n
L1
C
P
n
M300
1150
140
870
1
1650
140
685
2
2150
137.5
625
3
M400
1200
150
900
1
1700
150
700
2
2200
147.5
635
3
M500
1250
160
930
1
1750
160
715
2
2250
157.5
645
3
M600
1300
170
960
1
1800
170
730
2
2300
167.5
655
3
M800
1400
180
1040
1
1900
180
770
2
2400
180.0
680
3
Performance
Type

Design Compressive Deflection(%)
Tolerance%
High Reaction Force
Stand Reaction Force
Reaction Force
Reaction Force
Energy Absorption
Reaction Force
Energy Absorption
Reaction Force
Energy Absorption

M300×1000L
257
29.4
213
24.3
182.3
20.6
±10
M400×1000L
341
53.0
282
44.1
242.0
37.2
M500×1000L
427
83.3
354
68.6
304.0
58.8
M600×1000L
514
120.0
425
100.0
366.0
84.2
M800×1000L
685
213.0
566
177.3
486.0
150.0

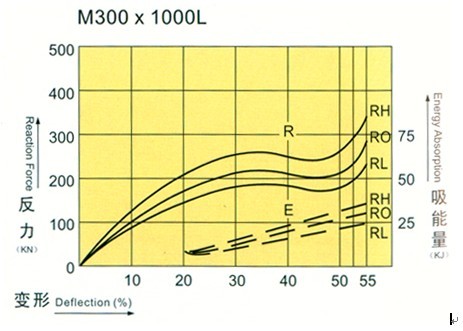

Performance Curve
