Fender

Standard Rubber Fender

Super Arch Type (Type SA) Rubber Fender (Equal to Type DA-A)

Feature

1.High energy absorption and low reaction force.
2.Reasonable Structure and long useful life.
3.It can be installed firmly and replaced easily

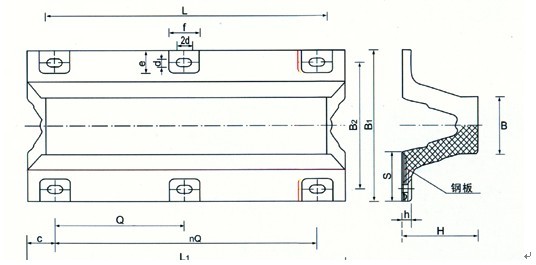

Specification
Unit:mm
Type

Specification
H
L
L1
B
B1
B2
c
d
e
f
h
n×Q
s
SA300×1000
300
1000
1150
225
600
490
140
37
105
140
45
1×870
195
SA300×1500
300
1500
1650
225
600
490
140
35
105
140
33
2×685
195
SA300×2000
300
2000
2150
225
600
490
137.5
35
105
140
33
3×625
195
SA400×2500
300
2500
2650
225
600
490
140
35
105
140
33
3×790
195
SA400×3000
300
3000
3150
225
600
490
145
35
105
140
33
4×715
195
SA400×1000
400
1000
1200
300
800
670
150
41
120
165
40
1×900
260
SA500×1500
400
1500
1700
300
800
670
150
41
120
165
40
2×700
260
SA500×2000
400
2000
2200
300
800
670
147.5
41
120
165
40
3×635
260
SA500×2500
400
2500
2700
300
800
670
150
41
120
165
40
3×800
260
SA600×3000
400
3000
3200
300
800
670
150
41
120
165
40
4×725
260
SA600×1000
500
1000
1250
375
1000
840
160
47
140
180
45
1×930
325
SA600×1500
500
1500
1750
375
1000
840
160
47
140
180
45
2×715
325
SA800×2000
500
2000
2250
375
1000
840
157.5
47
140
180
45
3×645
325
SA800×2500
500
2500
2750
375
1000
840
160
47
140
180
45
3×810
325
SA500×3000
500
3000
3250
375
1000
840
165
47
140
180
45
4×730
325
SA600×1000
600
1000
1300
450
1200
1010
170
50
160
195
54
1×960
390
SA600×1500
600
1500
1800
450
1200
1010
170
50
160
195
54
2×730
390
SA600×2000
600
2000
2300
450
1200
1010
167.5
50
160
195
54
3×655
390
SA600×2500
600
2500
2800
450
1200
1010
170
50
160
195
54
3×820
390
SA600×3000
600
3000
330
450
1200
1010
170
50
160
195
54
4×740
390
SA800×1000
800
1000
1400
600
1600
1340
180
68
260
270
72
1×1040
520
SA800×1500
800
1500
1900
600
1600
1340
180
68
260
270
72
2×770
520
SA800×2000
800
2000
2400
600
1600
1340
180
68
260
270
72
3×680
520
SA800×2500
800
2500
2900
600
1600
1340
182.5
68
260
270
72
3×845
520
SA1000×1000
1000
1000
1500
750
2000
1680
200
68
300
290
90
1×1100
650
SA1000×1500
1000
1500
2000
750
2000
1680
200
68
300
290
90
2×800
650
SA1000×2000
1000
2000
2500
750
2000
1680
200
68
300
290
90
3×700
650

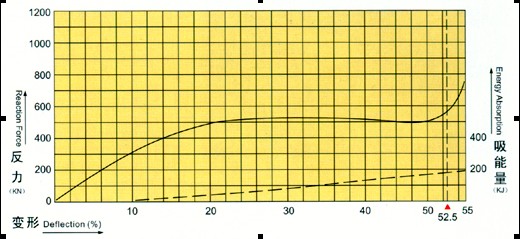

Performance curve
SA300×1000
comp.\Per.\Deflection
Design Compressive Deflection 50%
Reaction Force(KN)
Energy Absorption(KJ)
Tolerance
Standard
206
26
±10%
SA500×1000
comp.\Per.\Deflection
Design Compressive Deflection 50%
Reaction Force(KN)
Energy Absorption(KJ)
Tolerance
Standard
344
72
±10%
SA600×1000
comp.\Per.\Deflection
Design Compressive Deflection 50%
Reaction Force(KN)
Energy Absorption(KJ)
Tolerance
Standard
412
104
±10%
SA-800×1000
comp.\Per.\Deflection
Design Compressive Deflection 50%
Reaction Force(KN)
Energy Absorption(KJ)
性能公差
Standard
550
185
±10%
Performance
Type
HR High Reaction Force
SR Standard Reaction Force
52.5%
55%
52.5%
55%


Reaction (KN)


Energy Absorption (KJ)
Reaction (KN)
Energy Absorption (KJ)


Reaction (KN)


Energy Absorption (KJ)
Reaction (KN)
Suction energy(KJ)
SA300×1000
249
31
346
33
206
26
286
28
SA300×1500
374
47
519
50
309
39
429
42
SA300×2000
498
62
692
66
412
52
572
56
SA300×2500
622.5
77.5
865
82.5
515
65
715
70
SA300×3000
747
93
1038
99
618
78
855
84
SA400×1000
332
56
461
60
275
46
382
49
SA400×1500
498
84
692
90
413
69
573
74
SA400×2000
664
112
922
120
550
92
764
98
SA400×2500
830
140
1152.5
150
688
115
955
122.5
SA400×3000
996
168
1383
180
825
138
1146
147
SA500×1000
415
87
576
93
343
72
478
77
SA500×1500
623
131
964
140
516
108
717
116
SA500×2000
830
174
1152
186
688
144
956
154
SA500×2500
1037.5
217.5
1440
232.5
860
180
1195
192.5
SA500×3000
1245
261
1728
279
1032
216
1434
231
SA600×1000
498
126
692
135
412
104
572
111
SA600×1500
747
189
1038
203
618
156
858
167
SA600×2000
996
252
1384
270
824
208
1144
222
SA600×2500
1245
315
1730
337.5
1030
260
1430
277.5
SA600×3000
1494
378
2076
405
1236
312
1716
333
SA800×1000
664
223
922
239
550
185
764
198
SA800×1500
996
335
1383
359
825
278
1146
297
SA800×2000
1328
446
1844
478
1100
370
1528
396
SA800×2500
1660
557.5
2305
597.5
1375
463
1910
495
SA1000×1000
830
349
1153
374
688
289
956
310
SA1000×1500
1245
524
1730
561
1032
434
1434
465
SA1000×2000
1660
689
2306
748
1376
576
1912
620
